Removal and installation of left bracket assembly of side mirror

Remove

  1. Power off the low-voltage electrical system. Refer to Power-off and power-on of low-voltage electrical system

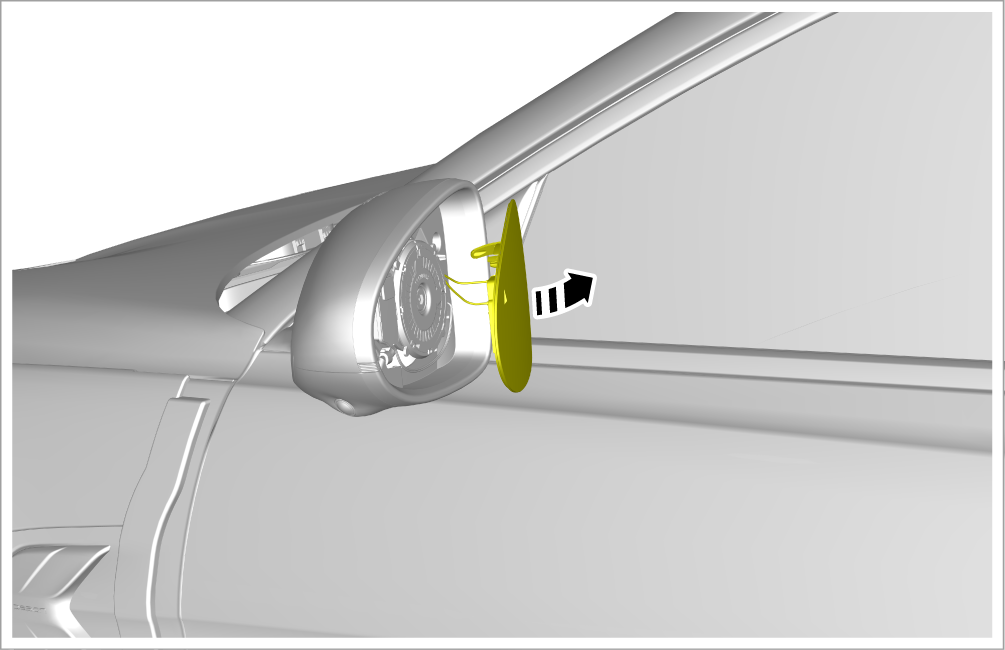

  2. Remove the left bracket assembly of side mirror.

    Caution
    Since the bracket assembly is fragile, wear gloves for removal, and remove them from edges to prevent scratches.

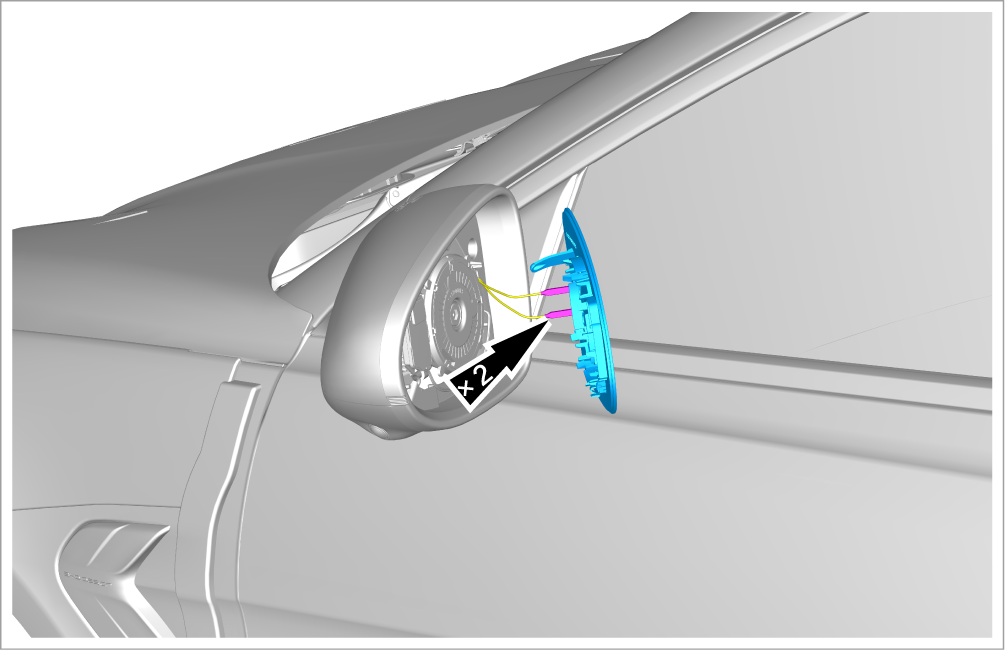

  3. Disconnect 2 connectors and take out the left bracket assembly of side mirror.

Install

  1. Install it in the reverse order of removal.
